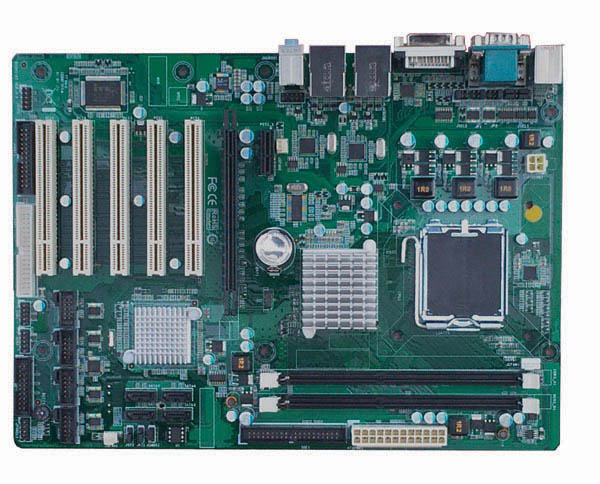

Intel G41 ATX board w/VGA/2*Giga LAN/Audio/6*COM

產(chǎn)品亮點

· LGA775 support Intel Core2 Quad/Core 2 Duo/Pentium D/Celeron D

· Intel G41 + ICH7/IC7R, FSB 800/1066/1333MHz

· 2 x 240pin DIMM DDR3 1066/1333 up to 8GB

· 2 x Intel 82574L PCI-E Gigabit LAN

· 6 x COM ports，4 x SATAII，8 x USB2.0

· 1 x PCIe x 16, 1 x PCIe x 1, 5 x PCI slots expansion

產(chǎn)品規(guī)格

>> System

Processor                          LGA775 Support Core 2 Quad Q9000 Series/Core 2 Duo/Pentium D/Celeron D

Chipset                              Intel G41 + ICH7/ ICH7R(option by MOQ), FSB 800/1066/1333MHz

DRAM                                 2 x 240PIN DIMM DDR3 1066/1333 max up to 8GB

BIOS                                  8Mb AMI Flash ROM

Power Supply                    1 x 24Pin ATX power connector, support AT/ATX mode

Watchdog                          Watchdog timer function (Reset: 1~65535 level)

Dimension                          305mm x 244mm

>> I/O Ports

HDD                                    4 x SATA-300 Interface, support RAID 0/1/5/10(ICH7R)

FDD                                     1 x FDD port

Serial Port                           5 x RS232 COM ports, 1 x RS232/422/485 COM port

Parallel                                1 x Parallel pin-header

Audio                                   Realtek ALC662 HD audio codec, support 5.1CH audio

Keyboard/Mouse                 2 x PS/2 for Keyboard and Mouse

LAN                                      2 x Intel 82574L PCI-E Gigabit Lan

USB                                      8 x USB2.0 (4 by onboard header)

Digital I/O                            4 input; 4 output

Expansion                           1 x PCIe x 16, 1 x PCIe x 1, 5 x PCI slots expansion

>> Display

Graphics                              Intel GMA X4500, Max. shared system memory up to 1024MB

VGA                                     2048 x 1536 maximum resolution

DVI                                      2048 x 1536 maximum resolution

>> Environment

Operation Temperature       0°~60°C

Humidity                              10~90%

訂購信息

Model                               Description

SYM76941VGGA                Intel G41 + ICH7 ATX board w/VGA/2*Giga LAN/Audio/6*COM

SYM76941VGGA-R             Intel G41 + ICH7R ATX board w/VGA/2*Giga LAN/Audio/6*COM/RAID
